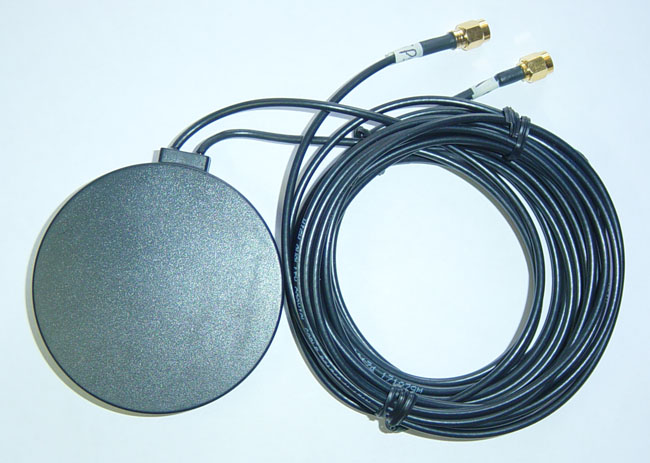

ABG-2(GPS+GSM Antenna) |
|
|
|
Product Overview
| GPS |
|
| Center Frequency |
1575.42MHz±3 MHz |
| V.S.W.R |
1.5:1 |
| Band Width |
±5 MHz |
| Impendence |
50 ohm |
| Peak Gain |
＞3dBic Based on 7×7cm ground plane |
| Gain Coverage |
＞-4dBic at –90°＜0＜+90°(over 75% Volume) |
| Polarization |
RHCP |
| GSM |
|
| Center Frequency |
824MHz—960MHz，1710MHz—1990MHz |
| V.S.W.R |
2.0:1 |
| Impendence |
50 ohm |
| Gain |
2dBi+/-1dB@900MHz，1dBi+/-1dB@1800MHz | |
|
|
|
|
